UserLock Enrollment with YubiKey

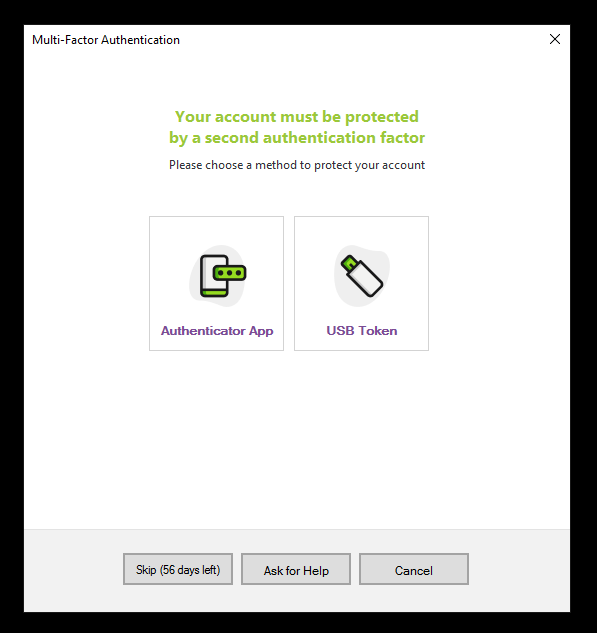

At some point when logging in your computer you will be prompted with the following screen. You may select "Skip" but only for a limited amount of time. Before that time expires, you must enroll by selecting either "Authenticator App" or "USB Token."

Steps to enroll YubiKey for login.

1. The user plugs the YubiKey into the USB port of their computer.

2. The user logs in.

3. The UserLock desktop agent automatically detects that a YubiKey is connected and therefore asks the user if it is the preferred method to configure multi-factor authentication.



4. Choose "Yes", a dialog box appears, showing the available YubiKey slot. Choose an empty slot, then click "Link Yubikey":



5. Next, the Desktop UserLock agent programs the YubiKey using the MFA secret (without displaying it), then updates the Link YubiKey button to confirm that the operation succeeded:



6. The cursor appears in the edit box of the authentication code and the user can touch the YubiKey depending on the selected slot: Generally, a short touch will activate Slot 1 or a long touch will activate Slot 2.

   As a result, the edit box will display the associated 6-digit code and automatically close the dialog box indicating that the verification operation succeeded.

Subsequent connections for two-factor authentication with UserLock and YubiKey

Following the initial connection in which the YubiKey configuration is included, subsequent connections where MFA is requested will occur as follows:

1. The user plugs the YubiKey into a USB port of their computer (the client computer if they are using RDP).

2. The user logs in.

3. The UserLock desktop agent requests the authentication code:



4. The user touches the YubiKey button depending on the slot chosen: Generally, a short touch will activate Slot 1 or a long touch will activate Slot 2.

   The edit box will display the associated 6-digit code. In order to logon, The user clicks "Verify and continue".
